Individual Design Module Size 245*122 mm Three Colors Custom LED Sign manufacturer from China Hantang Gaojing Optoelectronics Co., Ltd.

Place of Origin:

Zhejiang, China (Mainland)

Product Detail

Individual Design <span style="font-family: arial,

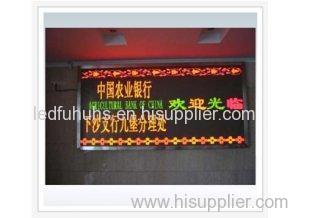

Individual Design Module Size 245*122 mm Three Colors Custom LED Sign

1. high brightness;
2. easy to change the poster and install;
3. welcome to customize individual design or size.

Technical Parameters of P7.62 indoor LED display


Usage	Indoor
Pitch(mm)	7.62
Pixel Constitute	1R1G1B
LED Chips--Opto+Silan	R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:(180-200mcd) G:(330-360mcd) G:(95-105mcd)
Pixel Density(dots/)	17223
Module Size(mm)	245*122
Modules for 1 (pcs)	33.6
Recommended Minimum Viewing Distance(m)	>=8
Viewing Angle(°)	V120, H140
Average Power Consumption	337W/
Brightness (white balance)	>=1300cd/
Refresh rate	180--600Hz
Average NO failure time	5000 hours
Life span	100000 hours
Working temperature	-20 +65
Driving Voltage	5VDC
Working Voltage	110 to 220 VDC
Driving mode	1/4
Display Function	Video, Animation, Graphics, other
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable:<100 m; Single fiber:<10 km
